Antlia 7nm Narrowband H-alpha (Ha) Prime Filter - 36mm Unmounted

Product Descriptions
Size 36mm Unmounted Price US$158
Brand Antlia Origin China

Antlia H-alpha Prime narrowband filter optimizes the FWHM (full width half maximum) to 7nm bandpass. The suppression of optical density is (OD)4 on unwanted wavelengths.The excellent optical coating characteristics found in the Antlia 3nm Pro series has been incorporated into the 7nm Prime narrowband filters. The result is that these filters deliver superior SNR(signal to noise ratio) and better contrast in your images. Antlia H-alpha 7nm Prime filters are designed to deliver 90% transmittance at the CWLHa 656.3nm lines that provides you with the maximum signal and well-defined nebulae structures. Besides, it is wide enough (7nm bandwidth) to pass emission lines at NII 654.8nm and NII 658.3nm. The out of band blocking specification is rated OD4 (0.01%) which delivers an excellent SNR(signal to noise ratio) and effective cut-off rate to minimize interference from other wavelengths.Improved sharp cut off astrophotography 7nm Prime filters are designed to minimize halos around bright stars. Antlia 7nm Prime filters can be used with nearly all systems as fast as f/2 with minimal loss in emission signal and meets the requirements of fast optics.

Application and Performance:

90% transmittance at Central Wavelength H-alpha 656.3nm line

FWHM is wide enough to pass both H-alpha and NII lines

With wider FWHM, 7nm Prime narrowband filters can be used with fast optics of f/2 with minimal loss of signal Steep spectral profile minimizes halos around bright stars

A single substrate to eliminate internal reflections Narrowband Objects: H-alpha,NII Emission Nebulae, Planetary, Wolf Rayet Nebulae and Supernova Remnants

Use in light polluted areas and dark sites

All Antlia unmounted filters are edge blackened to eliminate internal reflections from stray light

Superior optical reliability reduces post image processing

This filter is effective for deep sky objects that contain H-alpha and NII emissions

Technical Specifications:

Basic Substrate: Optical, Single / Non-glued substrate

Filter Thickness: 2mm+/-0.05mm for Dia36mm unmounted

FWHM (Full width at half maximum): 7nm

CWL (Central Wavelength): 656.3nm

Peak Transmission: 90%

Blocking: > 4OD(0.01% out of band blocking) @ 300-1000nm

Surface Quality: S/D (scratch/dig)= 60/40 (Refer to MIL-O-13830)

Transmitted Wavefront: Lambda/4 or better.

Parallelism: less than 30 arcsec

Warranty: 3-years against delamination

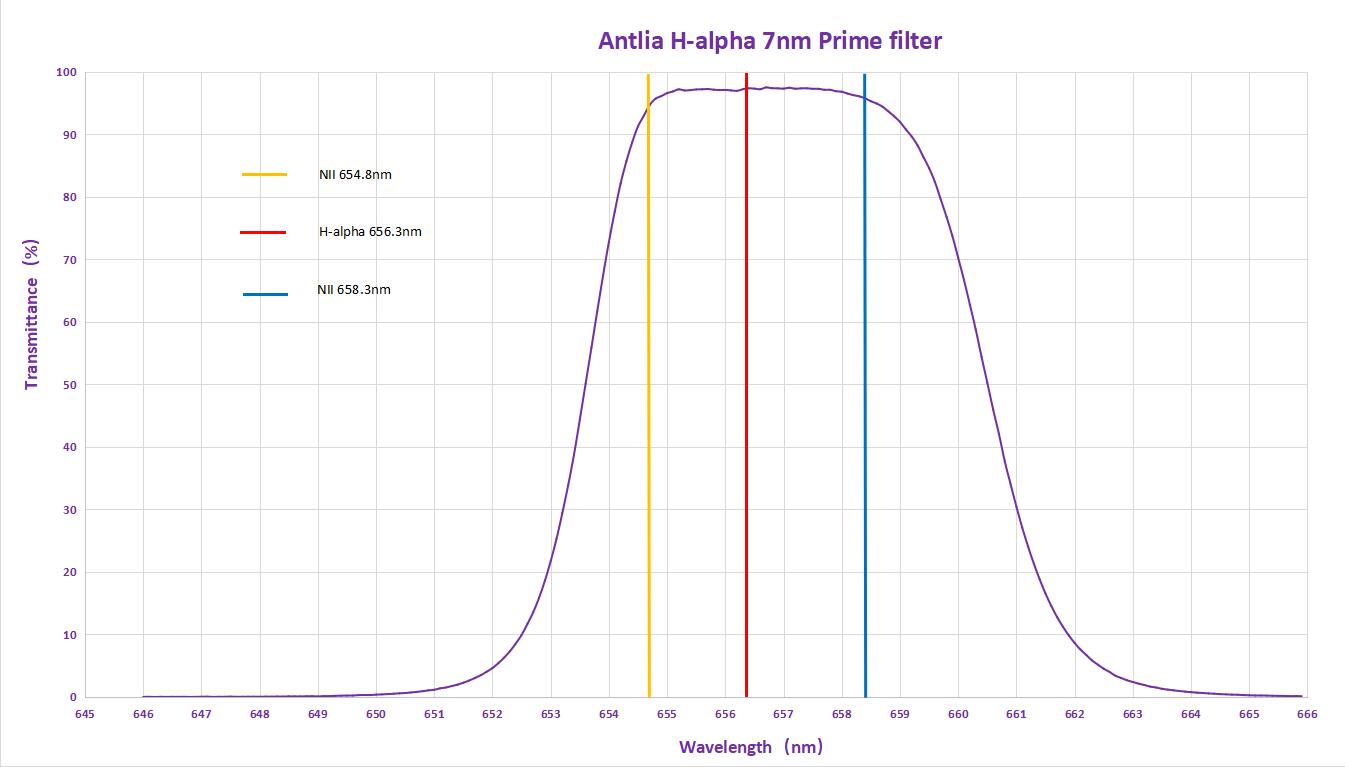

Spectrum Curve:

Antlia H-alpha 7nm Prime filter spectrum curve.jpg

Available SizesUnmounted Dia36mm

Not Recommended: Solar imaging Night visual observation

Not Permitted:


Serious eye damage will result if you fail to observe the warning

When we design filters for astronomy imaging systems, we look at how they will work together with optical systems, carefully designing the out of band blocking rate, transmittance and band-pass parameters to achieve an optimum result. Each filter is individually tested and scanned by strict QC to ensure that the quality meets the high-performance parameters. The result is that Antlia is known for designing filters for astrophotography that achieve exceptional quality and performance parameters at affordable prices. We believe the price to performance ratio compares more favorably than similar premium filters in the market.
